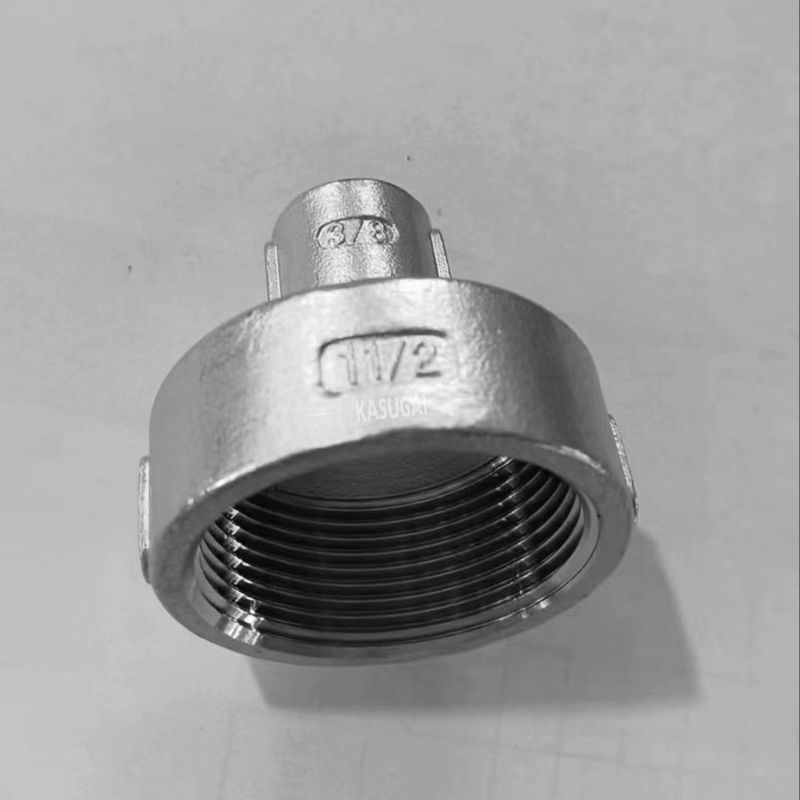

ISO 49-1994 (E) Edelstahl-Form-Faden CL150 304, der Sockel verringert
Produktinformation
| Produkt-Name | ISO 49-1994 (E) Edelstahl-Form-Faden CL150 304, der Sockel verringert |
| Faden-Arten | ASME B1.20.1 (NPT), BS 21 (NSPT), DIN2999/259 |
| Maße | ISO 49-1994 (E), MSS SP-114, ANSI B16.3 |
| Größen-Strecke | 1/8" bis 4" |
| Druck-Klasse | Klasse 150 |
| Materialien | ASTM A351 (CF8, CF8M), JIS (SCS13, SCS14), AISI (304/L, 316/L), ASTM A182/A276 (304/L, 316/L) |
Maße ISO 49-1994 von Sockeln (Millimeter)
| Passende Größen (Zoll) | Maße (Millimeter) | Schlaglänge (Millimeter) | |||
| M2 | M2 R-L | M2 Verringerung | a | z1 | z2 |
| ⅛ | — | 0,69 | 25 | 11 | — |
| ¼ | 0,81 | ¼ × ⅛ | 27 | 7 | 10 |
| ⅜ | ⅜ |
(⅜ × ⅛) ⅜ × ¼ |
30 | 10 |
13 10 |
| ½ | ½ |
½ × ¼ ½ × ⅜ |
36 | 10 |
13 13 |
| ¾ | ¾ |
¾ × ¼ ¾ × ⅜ ¾ × ½ |
39 | 9 |
14 14 11 |
| 1 | 1 |
1 × ⅜ 1 × ½ 1 × ¾ |
45 | 11 |
18 15 13 |
| 1¼ | 1¼ |
1¼ × ½ 1¼ × ¾ 1¼ × 1 |
50 | 12 |
18 16 14 |
| 1½ | 1½ |
(1½ × ½) 1½ × ¾ 1½ × 1 1½ × 1¼ |
55 | 17 |
23 21 19 17 |
| 2 | 2 |
(2 × ½) (2 × ¾) 2 × 1 2 × 1½ |
65 | 17 |
28 26 24 22 22 |
| ½ 2 | — |
(2½ × 1¼) (2½ × 1½) (2½ × 2) |
74 | 20 |
28 28 23 |
| 3 | — |
(3 × 1½) (3 × 2) (3 × 2½) |
80 | 20 |
31 26 23 |
| 4 | — |
(4 × 2) (4 × 2½) (4 × 3) |
94 | 22 |
34 31 28 |
| (5) | — | — | 109 | 29 | — |
| (6) | — | — | 120 | 40 | — |
